LCD

PreviousLEDsNextMenu/Calibration

Last updated 4 months ago

The Beau Rivage and Apex steering wheels are equipped with a 4.3inch 800x480 60FPS screen.

In the LCD tab, a number of settings are available for the screen.

Main Dashboard :

Luminosity :

By default, the screen brightness is set to 100%. You can adjust this by moving the slider as you wish.

Screen Settings :

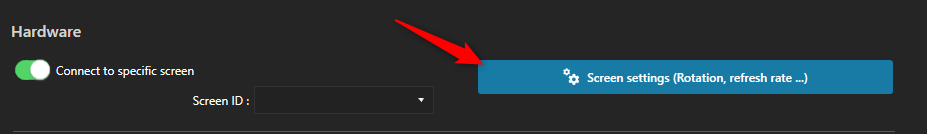

To enter the screen settings click on "Screen Settings"

Refresh Rate :

You can adjust the refresh rate of your screen (Remember : you need a Simhub licence to benefit from the maximum refresh rate).

Orientation :

You shouldn't have to change the orientation of the screen, but if you do, you can fix the problem (Nobody likes to race upside down).

Rendering offsets :

This allows you to shift the display left/right and up/down if necessary.

Rendering margins :

Allows you to create a left/right and top/bottom margin, so you can adapt some Dashboards that are a little too large.

Contrast :

Screen contrast ratio (as required) Once you have made your settings, press OK to confirm.

Here you can select Dashboards. You can download various Dashboards from the Internet as you wish (free, paid) or even make your own Dashboards via Simhub, but we invite you to download the P1Sim Dashboard corresponding to your steering wheel at the following address : The Dashboard is requiredP1Sim Beau Rivage or Apex OS5.0 for the Calibration step.
